Free-form Geometry, Delivered with Simplicity and Speed

Overview

Radius Track was contracted to solve the cold-formed steel framing needs for the port cochère's ribbed swale ceiling feature:

• Doubly curving stick framing system meeting design intent and California state building code
• Color coded kit of Parts solution for fast and simple installation
• Engineered system complying with rigorous structural requirements

Problem & Approach

Radius Track had to rationalize the architect's approved surface model design of the complex ceiling geometry. The team synthesized it into a buildable stick-framed kit.

The kit of Parts solution for structure and hanger connections needed to be flexible and considerate of multiple conditions. This flexibility was key to the speed of installation for the contractor's aggressive schedule.

Solution & Results

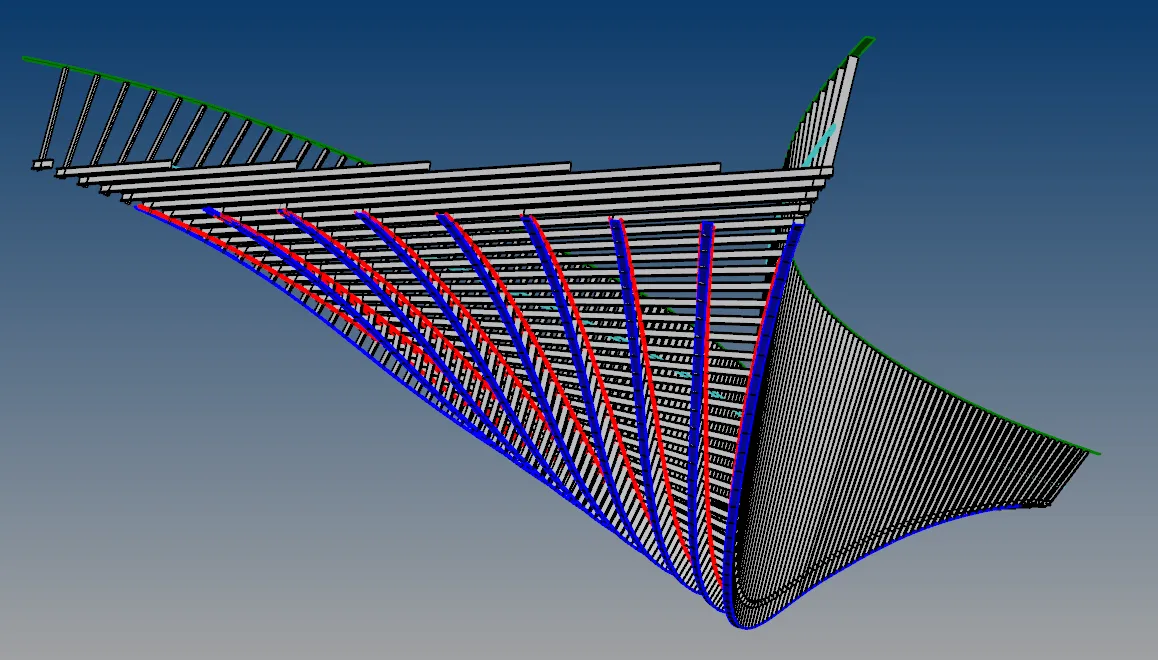

The team built a detailed 3D framing model to define the geometry of the swale. This helped understand the need for varying-height ribs running across the ceiling in both plan and elevation changes to meet California state structural requirements.

Key technical achievements included:

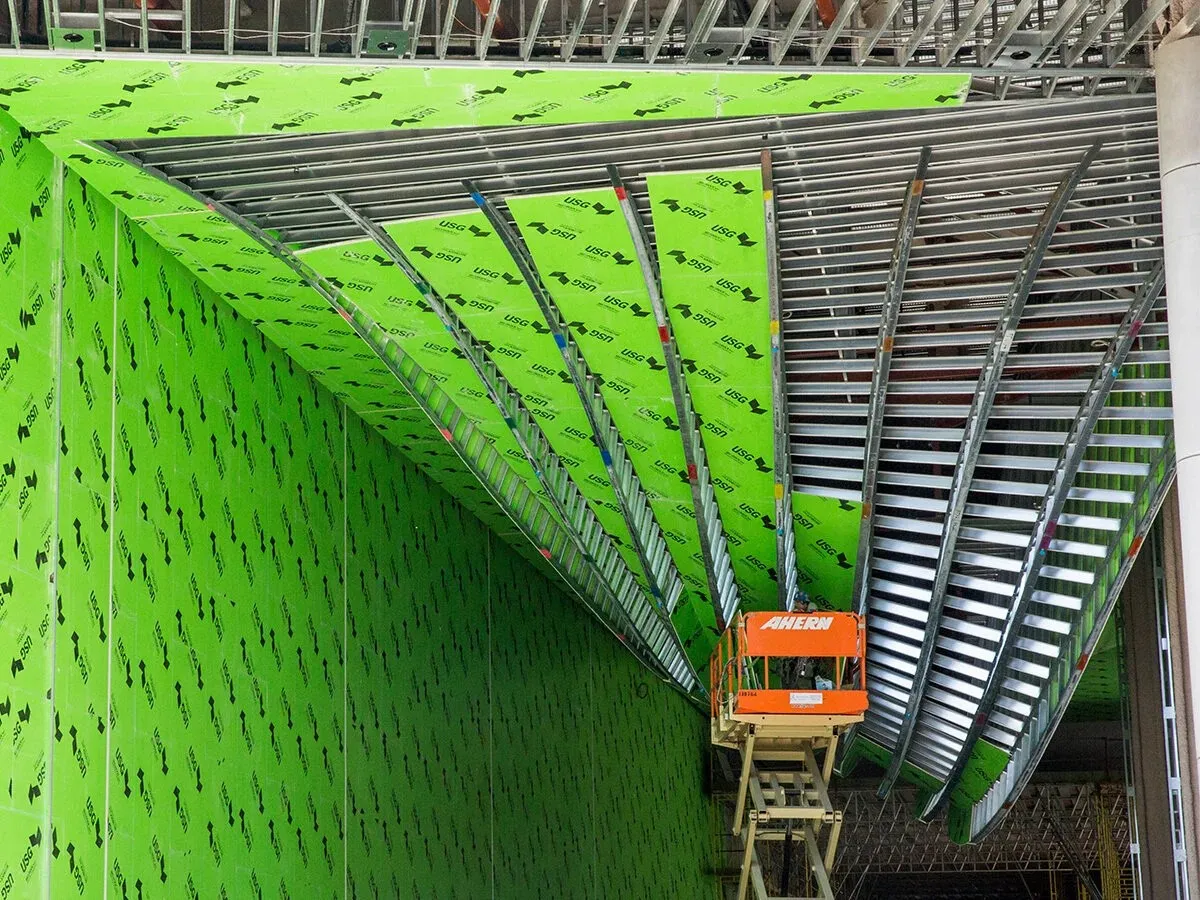

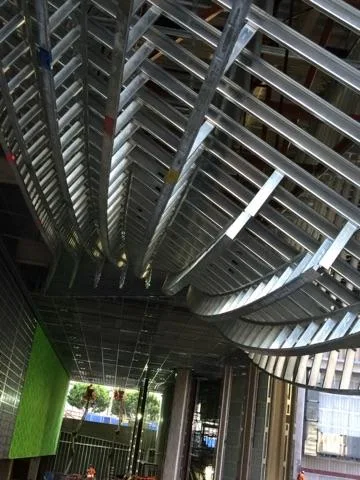

• Developed, fabricated, labeled, and shipped color coded system with layout points
• Provided installation drawings to simplify and increase speed of installation process
• Enabled quick and efficient installation meeting the client's aggressive schedule

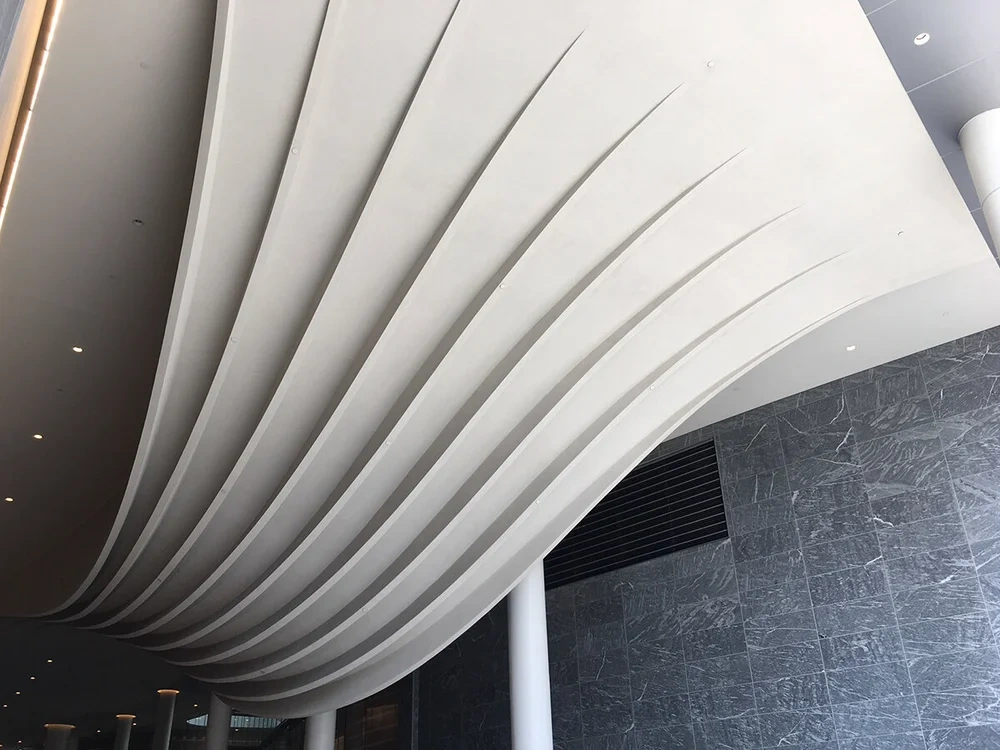

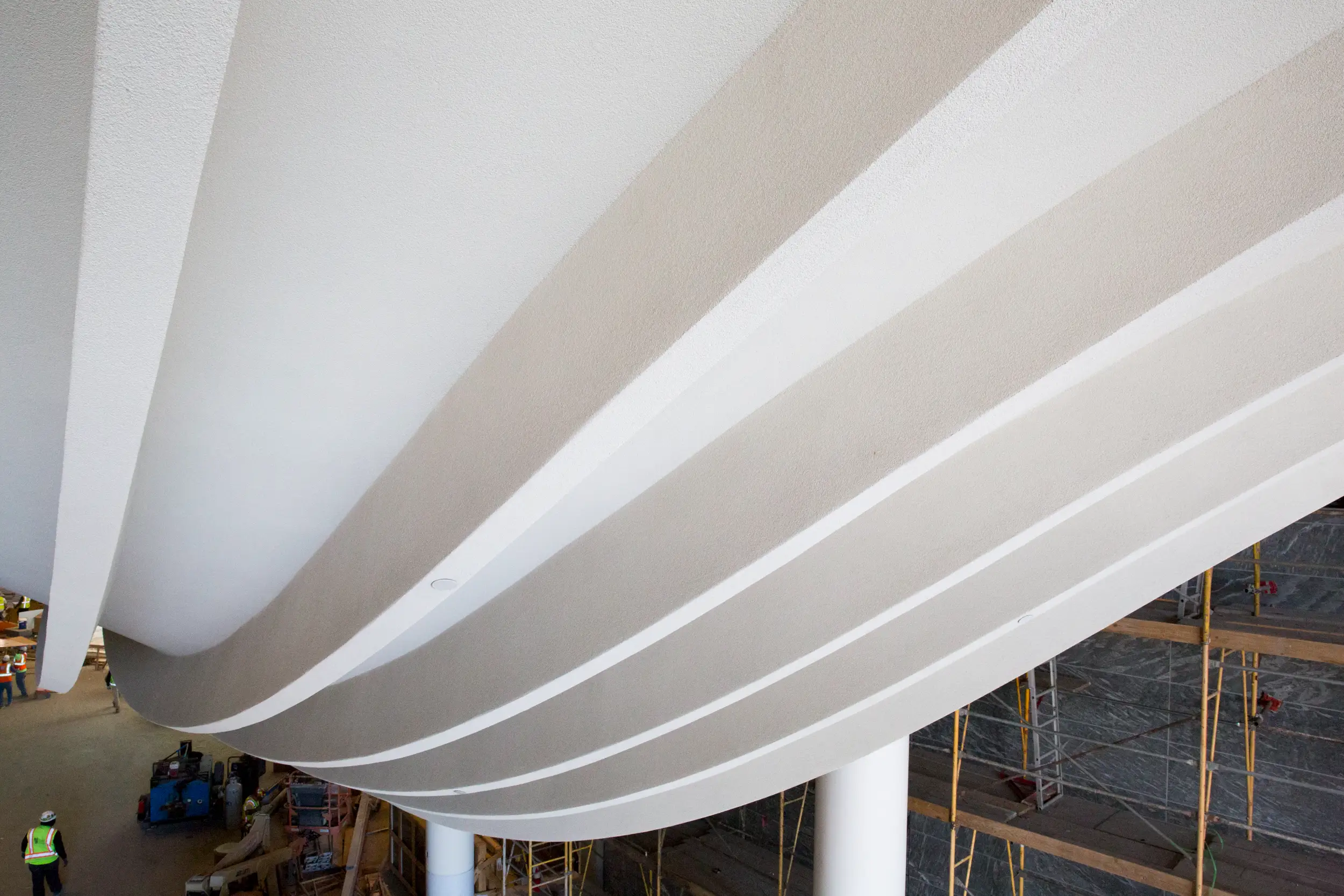

The fabricated system was installed as designed with the precision and efficiency the project demanded.
